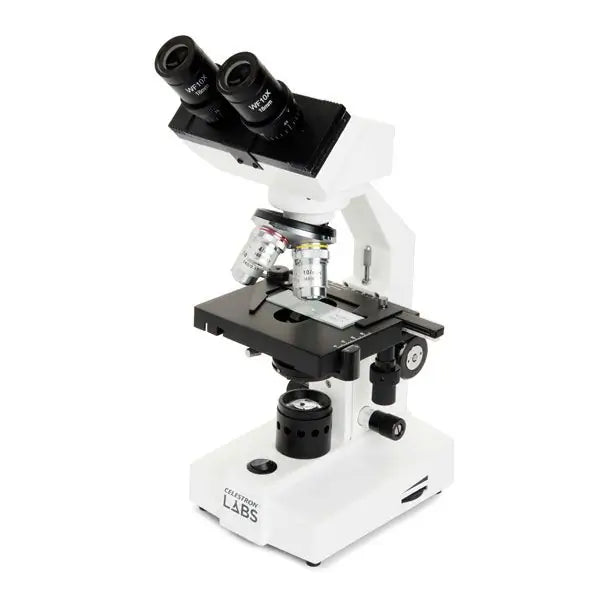

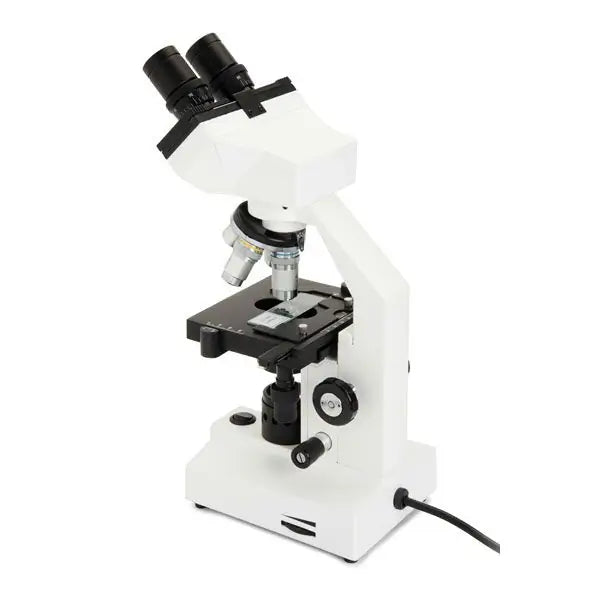

Type of Microscope: |
Compound Binocular |
Head: |
Binocular with 360° rotatable 45° incline and interpipilary distance adjustability |
Eyepiece(s) Magnification: |
(1) 10x and (1) 20x (10x with pointer) |
Eyepiece(s) Diameter: |
23.2mm (.91") |

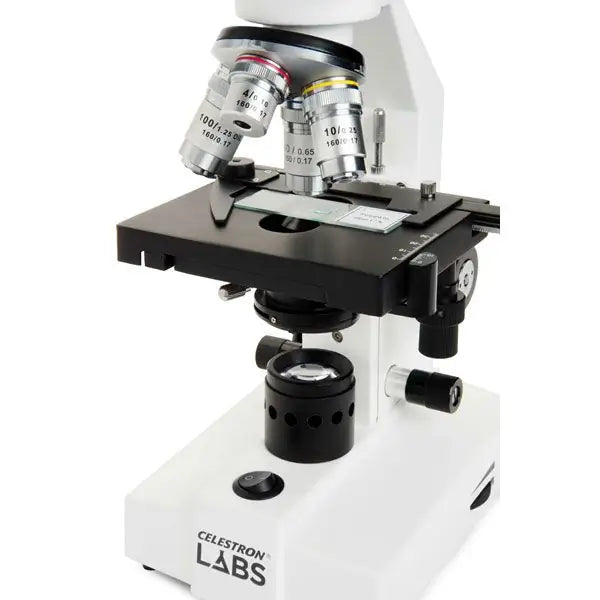

Nosepiece: |
quadruple, rotational |
Objective(s) Type: |
Refractive |
Objective(s) Standard: |
DIN |
Objective(s) Magnification: |
(4) 4x, 10x, 40x, 100x immersion, all achromatic |
Objective(s) Thread: |
4/5" x 1/36" |
Focus Type(s): |
Rack and pinion, coarse and fine focus (individual dials) |
Focus Travel (per rotation): |
0.1mm (.004") |
Magnification Range: |
40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
Illumination Type: |
LED |
Illumination Position(s): |
Lower |
Illumination Adjustability Mechanism: |
Dial |
Power Source: |
Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations |
Battery Option: |
N/A |
Stage: |
Mechanical stage, 110mm x 120mm (4.3" x 4.7") |
Condenser Type: |
Abbe with Iris adjustment |
Condenser N.A.: |
1.25 |
Stage Diaphragm: |
N/A |

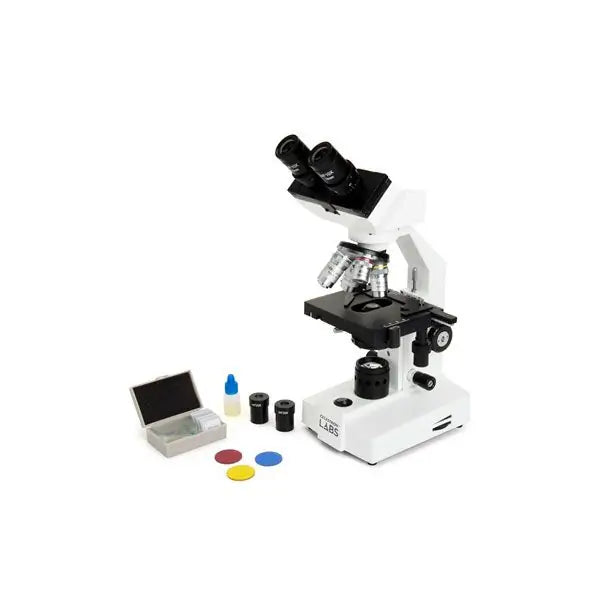

Included Items: |
3 color filters (blue, white opaque, green) Immersion oil10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s.
|
